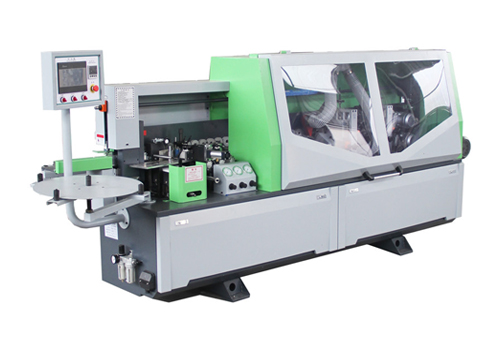

1, MF365 model fully-automatic edge banding machine
Unit price: $6,350USD/set
Main technical parameter:
1, Model: MF365
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 13-20m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, End-cutting unit motor: 0.55kw×2(18000RPM)
9, Fine-trimming unit motor: 0.75kw×2
10, Polishing Motor: 0.18kw×2
11, Glue Box Heater: 1.5kw
12, Air Presses To Side: 0.7Mpa
13, Total Power: 7.0kw
14, Overall dimension: 3600/900/1490(mm)
15, Weight: 1350KG

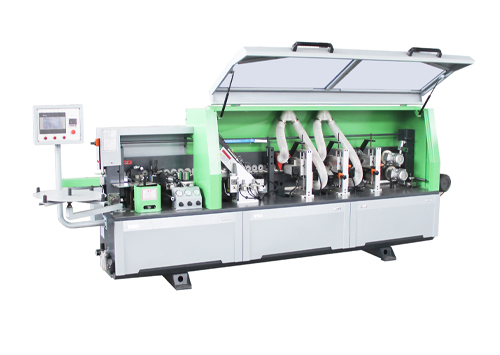

2, MF368 model fully-automatic edge banding machine
Unit price: $6,650USD/set
Main technical parameter:
1, Model: MF368
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 13-20m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, End-cutting unit motor: 0.55kw×2(18000RPM)
9, Rough-trimming unit motor: 0.75kw×2(18000RPM)
10, Fine-trimming unit motor: 0.75kw×2(18000RPM)
11, Polishing Motor: 0.18kw×2
12, Glue Box Heater: 1.5kw
13, Air Presses To Side: 0.7Mpa
14, Total Power: 7.0kw
15, Overall dimension: 3600/900/1490(mm)
16, Weight: 1350KG

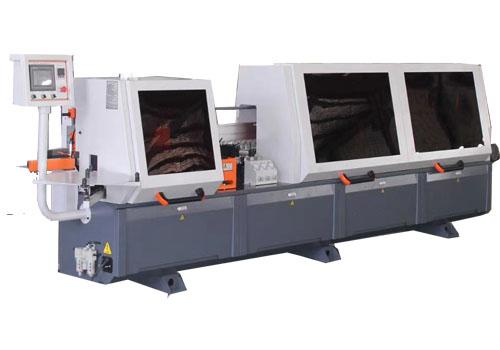

3, MF368J model fully-automatic edge banding machine
Unit price: $7,150USD/set
Main technical parameter:
1, Model: MF368J
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 13-20m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, Pre-milling unit motor: 0.75kw×2(18000RPM)
9, End-cutting unit motor: 0.55kw×2(18000RPM)
10, Rough-trimming unit motor: 0.75kw×2
11, Fine-trimming unit motor: 0.75kw×2
12, Polishing Motor: 0.18kw×2
13, Glue Box Heater: 1.5kw
14, Air Presses To Side: 0.7Mpa
15, Total Power: 7.0kw
16, Overall dimension: 3600/900/1490(mm)
17, Weight: 1350KG

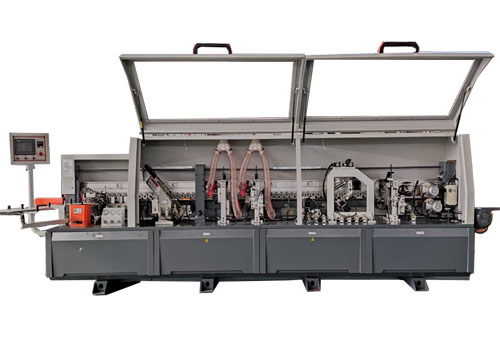

4, MF465 model fully-automatic edge banding machine
Unit price: $6,350USD/set
Main technical parameter:
1, Model: MF465
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 13-20m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, End-cutting unit motor: 0.55kw×2(18000RPM)
9, Rough-trimming unit motor: 0.75kw×2
10, Fine-trimming unit motor: 0.75kw×2
11, Round-corner trimming unit motor: 0.75kw×2
12, Polishing Motor: 0.18kw×2
13, Glue Box Heater: 1.5kw
14, Air Presses To Side: 0.7Mpa
15, Total Power: 7.0kw
16, Overall dimension: 3600/900/1490(mm)
17, Weight: 1350KG
5, MF468 model fully-automatic edge banding machine
Unit price: $6,350USD/set
Main technical parameter:
1, Model: MF465
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 13-20m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, End-cutting unit motor: 0.55kw×2(18000RPM)
9, Rough-trimming unit motor: 0.75kw×2
10, Fine-trimming unit motor: 0.75kw×2
11, Round-corner trimming unit motor: 0.75kw×2
12, Polishing Motor: 0.18kw×2
13, Glue Box Heater: 1.5kw
14, Air Presses To Side: 0.7Mpa
15, Total Power: 7.0kw
16, Overall dimension: 3600/900/1490(mm)
17, Weight: 1350KG
