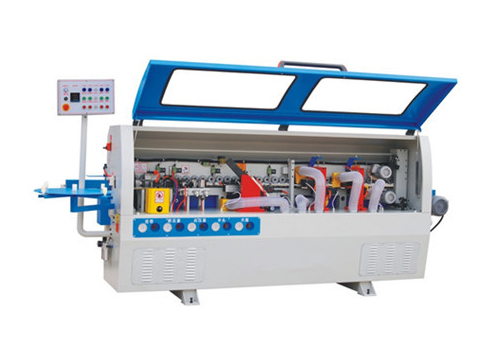

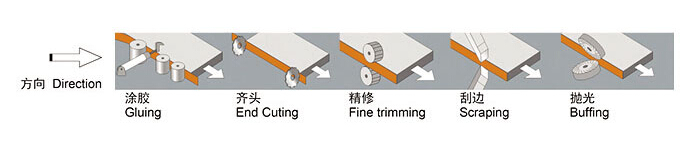

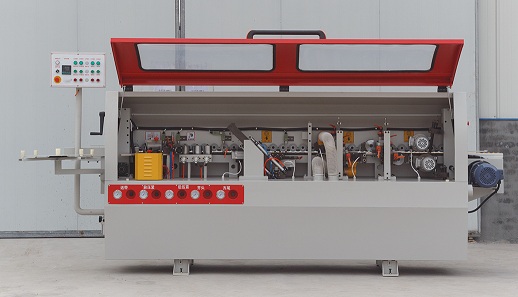

1, Model: MF360A mode; fully-automatic edge banding machine
Unit price: $6,350USD/set
Main technical parameter:
1, Model: MF360A
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 17m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, End-cutting unit motor: 0.55kw×2(18000RPM)
9, Fine-trimming unit motor: 0.75kw×2
10, Polishing Motor: 0.18kw×2
11, Glue Box Heater: 1.5kw
12, Air Presses To Side: 0.7Mpa
13, Total Power: 7.0kw
14, Overall dimension: 3600/900/1490(mm)
15, Weight: 1350KG

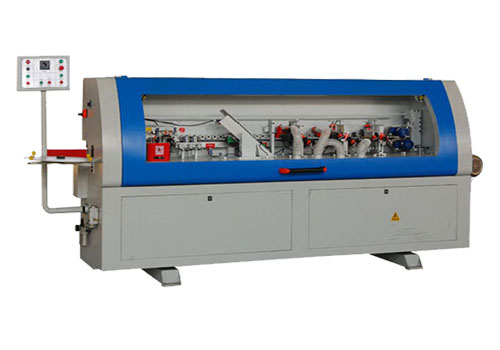

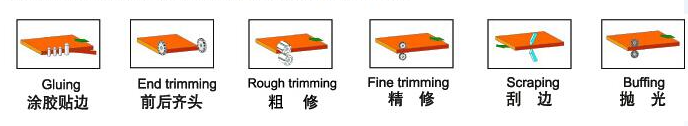

2, MF360E model fully-automatic edge banding machine
Unit price: $6,650USD/set
Main technical parameter:
1, Model: MF360E
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 17m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, End-cutting unit motor: 0.55kw×2(18000RPM)
9, Rough-trimming unit motor: 0.75kw×2
10, Fine-trimming unit motor: 0.75kw×2
11, Polishing Motor: 0.18kw×2
12, Glue Box Heater: 1.5kw
13, Air Presses To Side: 0.7Mpa
14, Total Power: 7.0kw
15, Overall dimension: 3600/900/1490(mm)
16, Weight: 1350KG

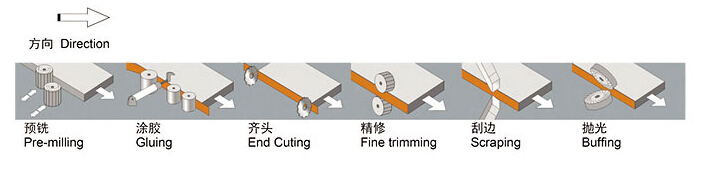

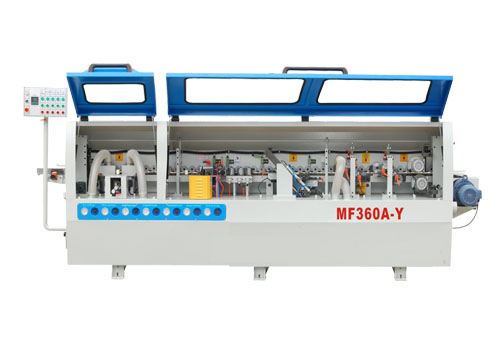

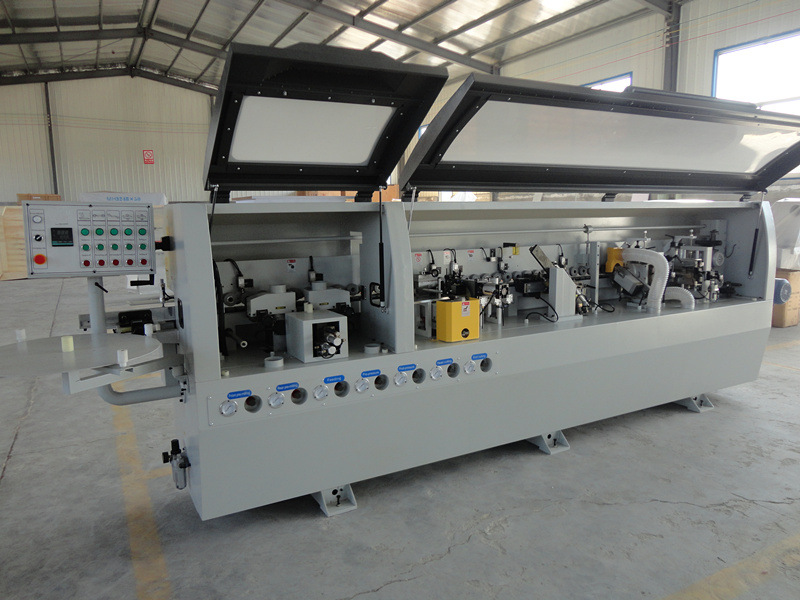

3, MF360AY model fully-automatic edge banding machine
Unit price: $7,250USD/set
Main technical parameter:
1, Model: MF360AY
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 17m/min
6, Transport Motor: 1.5KW
7, Glue Post Motor: 0.55KW
8, EPre-milling unit motor: 1.8kw×2(18000RPM)
9, End-cutting unit motor: 0.55kw×2(18000RPM)
10, Rought-cutting unit motor: 0.75kw×2
11, Fine-trimming unit motor: 0.75kw×2
12, Polishing Motor: 0.18kw×2
13, Glue Box Heater: 1.5kw
14, Air Presses To Side: 0.7Mpa
15, Total Power: 8.5kw
16, Overall dimension: 4600/900/1490(mm)
17, Weight: 1700KG

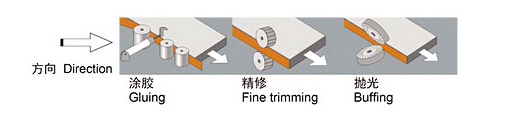

4, MF360C model semi-automatic edge banding machine
Unit price: $3,450USD/set
Main technical parameter:
1, Model: MF360C
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 17m/min
6, Transport Motor: 0.75KW
7, Glue Post Motor: 0.37KW
8, Fine-trimming unit motor: 0.75kw×2(18000rpm)
9, Polishing Motor: 0.18kw×2
10, Glue Box Heater: 1.5kw
11, Total Power: 5.0kw
12, Overall dimension: 2370/850/1460(mm)
13, Weight: 850KG

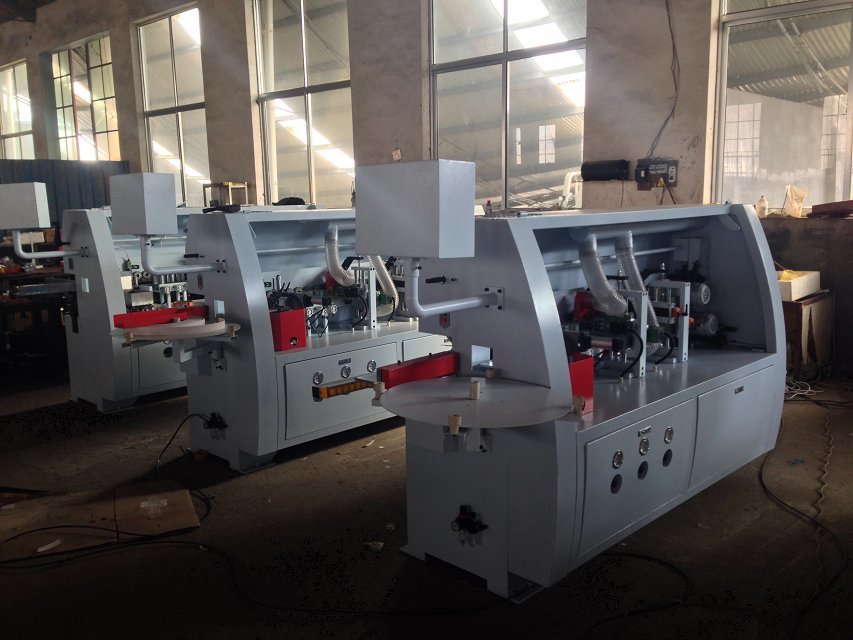

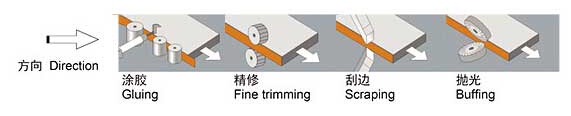

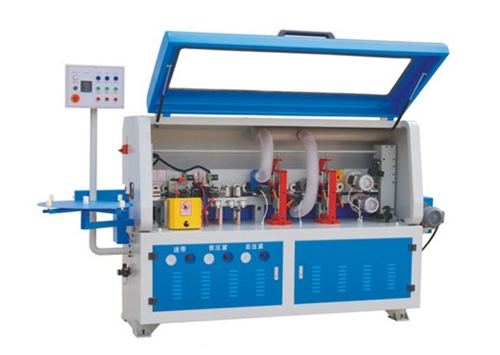

5, MF360D model semi-automatic edge banding machine
Unit price: $3,850USD/set
Main technical parameter:
1, Model: MF360D
2, The thickness of edge banding: 0.4-3mm
3, The width of edge banding: 12-55mm
4, The Thickness panel: 10-50mm
5, The Transporting Speed: 17m/min
6, Transport Motor: 0.75KW
7, Glue Post Motor: 0.37KW
8, Fine-trimming unit motor: 0.75kw×2(18000rpm)
9, Polishing Motor: 0.18kw×2
10, Glue Box Heater: 1.5kw
11, Total Power: 5.0kw
12, Overall dimension: 2750/850/1460(mm)
13, Weight: 1000KG
