1, Model: MZ2500B Membrance vacuum press laminating machine
Feature:
Fully-automatic vacuum laminating machine
1), Automatic feeding/Out
2), Automatic adsorption
3), Double-station
Unit price: $4,950USD/set
Main technical parameter:
Model: MZ2500B
Working table quantity: 2 pieces
Working table size: Inner diameter: 2500 * 1250 * 60(mm)
Working table size: Outer diameter: 2650 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 18kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 100000 * 1800 * 1600(mm)
Packing size(Plywood case): 3000 * 1800 * 2000(mm)
Weight: 1500kg
Application materials: PVC film/PET film
2, Model: TM-2680D Membrance vacuum press laminating machine
Feature:
Small under pressure vacuum laminating machine
1), Automatic feeding/Out
2), Automatic adsorption
3), With bottom heating
Unit price: $5,800USD/set
Main technical parameter:
Model: TM-2680D
Working table quantity: 2 pieces
Working table size: Inner diameter: 3000 * 1250 * 60(mm)
Working table size: Outer diameter: 3100 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 22kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 11000 * 1800 * 1900(mm)
Packing size(Plywood case): 3600 * 1800 * 2000(mm)
Weight: 1800kg
Application materials: PVC film/PET film

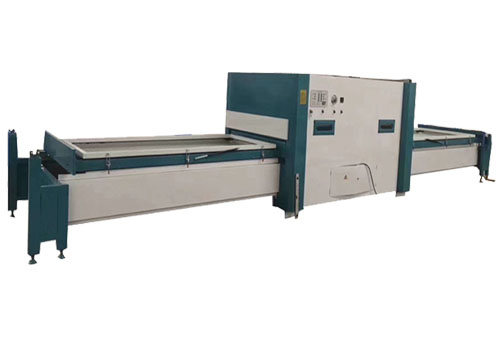

3, Model: FX-3000 Membrance vacuum press laminating machine
Feature:
Large under pressure vacuum laminating machine
1), Automatic feeding/Out
2), Automatic adsorption
3), Infra-red light heating
4), PLC touch screen,
5), Automatic cutting film
6), Automatic locking
Unit price: $6,800USD/set
Main technical parameter:
Model: FX-3000
Working table quantity: 2 pieces
Working table size: Inner diameter: 3000 * 1250 * 60(mm)
Working table size: Outer diameter: 3100 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 30kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 11500 * 1800 * 2000(mm)
Packing size(Plywood case): 3900 * 1900 * 2200(mm)
Weight: 3000kg
Application materials: PVC film/PET film

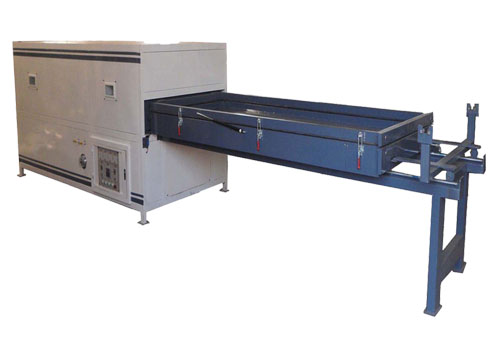

4, Model: MZ2500G Membrance vacuum press laminating machine
Feature:
Fully-automatic vacuum laminating machine
Working table pull by hand(Optional: automatic)
1), Fully-automatic;
2), Electric control heating box
3), Single-station
Unit price: $4,650USD/set
Main technical parameter:
Model: MZ2500G
Working table quantity: 1 pieces
Working table size: Inner diameter: 2500 * 1250 * 60(mm)
Working table size: Outer diameter: 2650 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 15kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 2800 * 1600 * 1400(mm)
Packing size(Plywood case): 2850 * 1600 * 1500(mm)
Packing size(Stretch film): 2800 * 1600 * 1450(mm)
Weight: 1000kg
Application materials: PVC film/PET film
