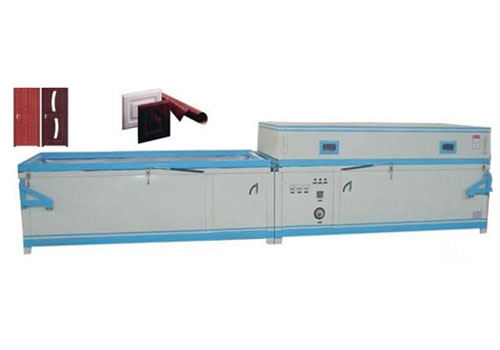

1, Model: MZ2500A model membrance vacuum press laminating machine
Feature:
Semi-automatic vacuum laminating machine
Heating box pull by hand
1), Semi-automatic
2), Hand control heating box
Unit price: $3,990USD/set
Main technical parameter:
Model: MZ2500A
Working table quantity: 2 pieces
Working table size: Inner diameter: 2500 * 1250 * 60(mm)
Working table size: Outer diameter: 2650 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 15kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 6000 * 1400 * 1400(mm)
Packing size(Plywood case): 2800 * 1600 * 2200(mm)
Packing size(Stretch film): 2700 * 1500 * 2100(mm)
Weight: 1200kg
Application materials: PVC film/PET film

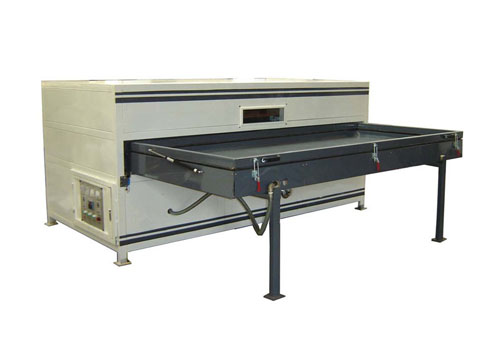

2, Model: MZ2500D Membrance vacuum press laminating machine
Feature:
Semi-automatic vacuum laminating machine
Working table pull by hand(Optional: automatic)
1), Semi-automatic;
2), Pneumatic control
Unit price: $3,790USD/set
Main technical parameter:
Model: MZ2500D
Working table quantity: 1 pieces
Working table size: Inner diameter: 2500 * 1250 * 60(mm)
Working table size: Outer diameter: 2650 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 15kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 2800 * 2800 * 1400(mm)
Packing size(Plywood case): 2800 * 1600 * 1500(mm)
Packing size(Stretch film): 2700 * 1500 * 1450(mm)
Weight: 1000kg
Application materials: PVC film/PET film
3, Model: MZ2500E Membrance vacuum press laminating machine
Feature:
Semi-automatic vacuum laminating machine
Heating box pull by hand
1), Semi-automatic;
2), Hand control heating box
Unit price: $3,790USD/set
Main technical parameter:
Model: MZ2500E
Working table quantity: 2 pieces
Working table size: Inner diameter: 2500 * 1250 * 60(mm)
Working table size: Outer diameter: 2650 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 15kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 2800 * 2800 * 1400(mm)
Packing size(Plywood case): 2800 * 1500 * 1400(mm)
Packing size(Stretch film): 2800 * 1500 * 1450(mm)
Weight: 1000kg
Application materials: PVC film/PET film
4, Model: MZ2500F Membrance vacuum press laminating machine
Feature:
Semi-automatic vacuum laminating machine
Heating box pull by hand
1), Semi-automatic;
2), Hand control heating box
Unit price: $3,790USD/set
Main technical parameter:
Model: MZ2500F
Working table quantity: 2 pieces
Working table size: Inner diameter: 2500 * 1250 * 60(mm)
Working table size: Outer diameter: 2650 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 15kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 5900 * 1400 * 1400(mm)
Packing size(Plywood case): 2800 * 1600 * 1500(mm)
Packing size(Stretch film): 2800 * 1500 * 1450(mm)
Weight: 1000kg
Application materials: PVC film/PET film

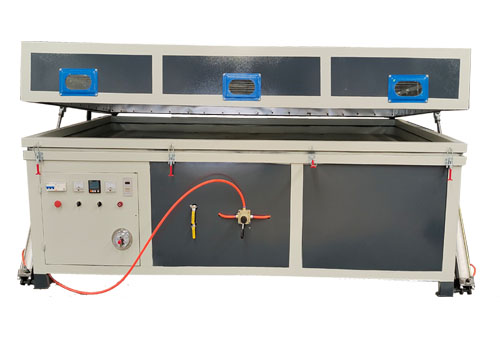

5, Model: MZ2500H Membrance vacuum press laminating machine
Feature:
Semi-automatic vacuum laminating machine
1), Semi-automatic;
2), Pneumatic control heating box
Unit price: $3,650USD/set
Main technical parameter:
Model: MZ2500H
Working table quantity: 1 pieces
Working table size: Inner diameter: 2500 * 1250 * 60(mm)
Working table size: Outer diameter: 2650 * 1400 (mm)
Max. working thickness: 50-80mm(customized)
Rated power: 15kw
Voltage condition: 220V/380V/415V/440V etc(customized)
Overall dimension: 2800 * 1600 * 1400(mm)
Packing size(Plywood case): 2800 * 1650 * 1500(mm)
Packing size(Stretch film): 2800 * 1600 * 1450(mm)
Weight: 900kg
Application materials: PVC film/PET film
