Triangular hand pulled electric hoist
Main technical parameter:
| Model | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Lifting capacity | 1T | 1.5T | 2T | 3T | 5T | 10T | 20T | 30T | 50T |
| Lifting height | 2.5m | 2.5m | 2.5m | 3m | 3m | 3m | 3m | 3m | 3m |
| Test load | 1.25T | 1.87T | 2.5T | 3.75T | 6.25T | 12.5T | 25T | 37.5T | 62.5T |
| Distance between hook | 317mm | 399mm | 414mm | 465mm | 636mm | 798mm | 890mm | 980mm | 1300mm |
| Hand tension | 309N | 320N | 360N | 340N | 414N | 414N | 828N | 450N*2 | 450N*2 |
| Chain qty | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 12 | 20 |
| Chain diameter | 6mm | 8mm | 8mm | 8mm | 10mm | 10mm | 10mm | 10mm | 10mm |
| Weight | 11.5kg | 17.4kg | 22.2kg | 26.2kg | 37.7kg | 72kg | 160kg | // | // |
Round hand pulled electric hoist
Main technical parameter:
| Model | HSZ0.5 | HSZ1 | HSZ1.5 | HSZ2 | HSZ3 | HSZ5 | HSZ10 | HSZ20 |
| Lifting capacity | 0.5t | 1t | 1.5t | 2t | 3t | 5t | 10t | 20t |
| Lifting height | 2.5m | 2.5m | 2.5m | 2.5m | 3m | 3m | 3m | 3m |
| Test load | 0.625t | 1.25t | 1.875t | 2.5t | 3.75t | 6.25t | 12.5t | 25t |
| Distance between hook | 270mm | 270mm | 368mm | 444mm | 486mm | 616mm | 700mm | 1000mm |
| Hand tension | 225N | 309N | 343N | 314N | 343N | 383N | 392N | 392N |
| Chain qty | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 |
| Chain diameter | 6mm | 6mm | 8mm | 6mm | 8mm | 10mm | 10mm | 10mm |

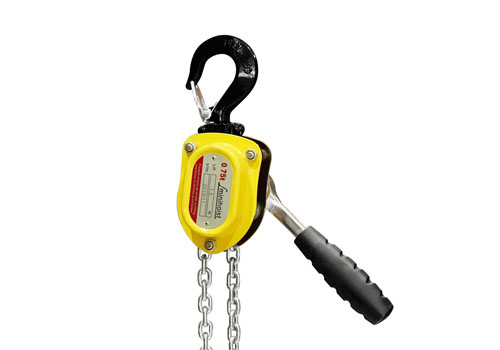

Mini hand level electric hoist
Main technical parameter:
| Model | 0.25T | 0.5T | 0.75T | 1.5T | |
| Lifting capacity | 250kg | 500kg | 750kg | 1500kg | |
| Lifting height | 3m | 3m | 3m | 3m | |
| Pulling force | 260N | 260N | 265N | 265N | |
| Dia chain/quantity | 4*12 | 4*12 | 5*15 | 7*12 | |
| Main size | A | 86 | 95 | 121 | 139 |
| B | 155 | 178 | 204 | 235 | |
| C | 170 | 170 | 240 | 240 | |
| D | 30 | 35 | 30 | 42 | |
| E | 79 | 87 | 112 | 133 | |
| Hmin | 245 | 285 | 335 | 365 | |
| Net weight(kg) | 2.2 | 3.2 | 4.7 | 7.6 | |
| Gross weight(kg) | 2.4 | 3.4 | 5 | 8 | |
| Dimension(cm) | 21*12.5*11.5 | 23.5*13.5*12 | 30*14*14 | 33*18*15.7 | |
