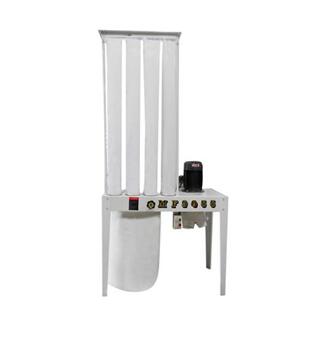

1，MF9055A model multi-bag dust collector
Features:
- State-of-the-art structure;
- More dust collection capacity;
- Tilting bar to control dust direction;
- Safety switch installed.
Specifications:
| Model | MF9055A |
| Motor Power | 5.5kw |
| Voltage/Frequency | 380v/ 50Hz,3 Phase |
| Air Volume | 8500 m3/hr |
| Suction Holes Diameter | 5’’ × 5pcs |
| Bag Diameter | 650mm × 1pcs
150mm × 16pcs |
| Packing Dimension | 1450×750×730(mm)/0.29(m3) |
| New Weight/Gross Weight | 240kg/214kg |
2, MF9075J model multi-bag dust collector
Features:
- User-friendlydesign;
- More connection for different machines;
- Excellent workingperformance;
- Powder coated surface, more durable.
Specifications:
| Model | MF9075J |
| Motor Power | 7.5kw |
| Voltage/Frequency | 380v/ 50Hz,3 Phase |
| Air Volume | 11000 m3/hr |
| Suction Holes Diameter | 6’’ × 5pcs |
| Bag Diameter | 630mm × 2pcs
150mm × 24pcs |
| Packing Dimension | 2350×1000×950(mm)/2.23(m3) |
| New Weight/Gross Weight | 301kg/306kg |

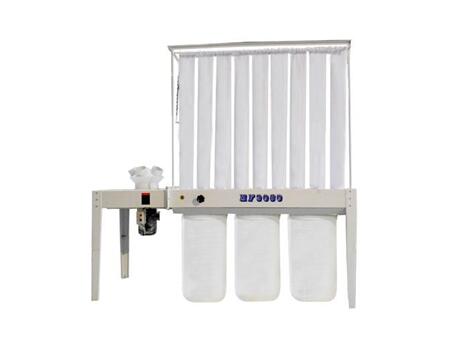

3, MF9080 model multi-bag dust collector
Features:
- Thicker metalsheet;
- Whole whitedesign;
- Safetyswitch;
- Bags of better filtrationcapability;
Specifications:
| Model | MF9080 |
| Motor Power | 7.5kw(Optional:11kw) |
| Voltage/Frequency | 380v/ 50Hz,3 Phase |
| Air Volume | 12000 m3/hr |
| Suction Holes Diameter | 6’’ × 5pcs |
| Bag Diameter | 630mm × 3pcs
150mm × 36pcs |
| Packing Dimension | 3100×1040×950(mm)/3.06(m3) |
| New Weight/Gross Weight | 323kg/328kg |

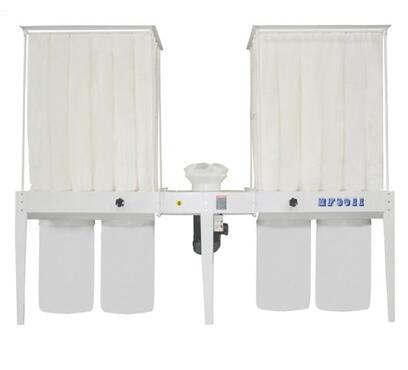

4, MF90110 model multi-bag dust collector
Specification:
| Model | MF90110 |
| MotorPower | 11Kw |
| Voltage /Frequency | 380V / 50Hz3phase |
| AirVolume | 16000(m3/hr) |
| Suction HolesDiameter | 6” X5PCS |
| BagDiameter | 630mm X4PCS
150mm X48PCS |
| PackingDimension | 4000*1040*950(mm)/ 3.95(m3) |
| Net Weight / GrossWeight | 460KG /465KG |
